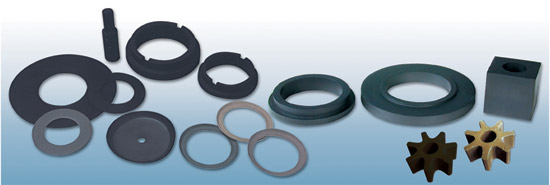

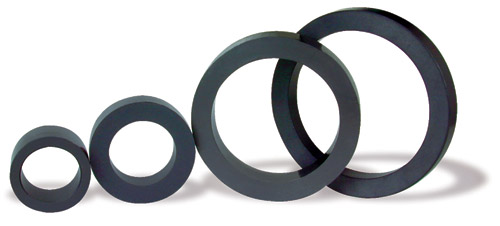

Filled PTFE Article

Kaxite Sealing's Filled PTFE Article offers unmatched durability and chemical resistance for demanding industrial applications. This high-performance sealing solution excels under extreme conditions, reducing downtime and maintenance costs. Its enhanced properties make it ideal for engineers and manufacturers seeking reliable, long-lasting seals. Experience superior performance and peace of mind with Kaxite Sealing's innovative Filled PTFE Article.

Send Inquiry

Product Description

With professional filled ptfe article factory, KAXITE is one of the leading China PTFE manufacturers and suppliers.

With professional PTFE Tubing factory, Ningbo Kaxite Sealing Materials Co.,Ltd is one of the leading China PTFE Tubing manufacturers and suppliers.

[ Features ]

Filled PTFE article is manufactured by moding method with filled PTFE resin. Filled PTFE resin is manufactured by compounding PTFE granular resin with fillers of many differents kinds. Amongst the many fillers suitable for compounding with PTFE, glass fiber, carbon fiber, Bronze and also lubricating materials like graphite, molybdenum disulphide, have been widely used in large scale production, Broadly speaking PTFE compounds have the following advantage over unfilled.

PTFE.

Improved compression strength

Improved thermal conductivity

Dereased thermal expansioin

Improved abrasion resistance

[ Specifications ]

outside diameter ／Inside diameter ×High (mm)	outside diameter ／Inside diameter ×High (mm)	outside diameter ／Inside diameter ×High (mm)	outside diameter ／Inside diameter ×High (mm)
15/10×40	71/55×90	115/65×100	170/100×100
30/19×70	75/42×150	115/75×100	172/135×50
36/24×50	77/55×100	117/80×110	172/145×115
40/18×100	79/65×80	120/98×70	187/159×70
40/20×100	83/30×100	122/102×60	205/162×90
42/25×100	83/60×100	125/60×100	213/189×100
48/36×100	84/53×70	125/80×85	220/170×40
49/39×50	64/60×100	127/86×100	229/185×70
50/28×100	90/68×100	129/112×62	250/214×100
57/40×50	93/60×100	135/92×65	284/250×95
60/30×50	93/65×100	140/100×100	290/240×120
64/30×50	100/60×100	141/112×100	304/364×50
66/45×50	100/65×100	142/112×100	325/285×100
66/51×50	100/75×100	148/118×100	390/354×120
66/55×50	100/84×50	150/110×100	395/355×50
68/42×60	102/65×100	160/130×65	516/468×80
69/42×100	107/65×100	162/126×100	578/530×90
70/45×50	110/50×70	164/137×62
	110/65×125	164/124×60

[ Main properties ]

Produc No.	Filled compound and Content by wt	Tensie strength MPa(min)	Ultimate strength %(min)	Compresive strength MPa(min)
1	20% glass fiber	10	120	16
2	25% glass fiber	10	100	16
3	20% glass fiber 5% graphile	10	120	16
4	60% Bronze	10	80	20
5	15% carbon fiber	11	130	16
6	24% Bronze 12% glass fiber 6% graphile	9	100	16
7	15% glass fiber 10% Polyikmide 5% graphile	10	120	16.7

[ Application of filled PTFE ]

Application	Necessary proerties	Suggested grades of filled PTFE
Gaskets	Creep resistance, chemical resistance	#1 #2 #3 #5
Valve seas	Creep resistance, Lowfriction, chemical resistance	#1 #2 #3 #5
Packings	Creep resistance, Lowfriction, Low wear, chemical resistance, stiffness	#1 #3 #5 #7
Bearings	Low wear, Lowfriction、Creep resistance	#1 #4 #5 #6
Bearing Pads	Creep resistance, Lowfriction, resistant to weathering	#3
Piston rings	Creep resistance, Lowfriction，chemical resistance, stiffness	#1 #2 #3 #5
