Kammprofile Gasket With Integral Outer Ring

With professional kammprofile gasket with integral outer ring factory, KAXITE is one of the leading China Kammprofile Gaskets manufacturers and suppliers.

Kammprofile Profile Gasket

Style KXT1130 Kammprofile Gasket With Integral Outer Ring

Our Kammprofile/Camprofile Gaskets are semi metallic gaskets that can be used for most applications from low to very high pressure.

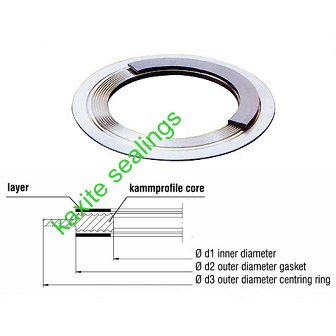

The gaskets consist of a metal core with corrugated grooves and a soft layer of sealing material bonded to either face. The corrugated

metal core is a very effective seal in applications where high temperatures, high pressures and fluctuating conditions exist, especially at

high seating loads. The sealing layers protect the flange faces from damage and have excellent sealing properties when supported by

the corrugated metal core.

The Kammprofile/Camprofile Gasket was developed as an alternative to both traditional metal jacketed and spiral wound gaskets.

Advantages

• Reliable sealing performance

• The gasket will not damage the flange surface and can be easily removed

• Low initial sealing stress for installation

• High resistance to severe temperature & pressure variation

• Reusable

Cost Saving

• Reduces maintenance costs-thanks to the camprofile gasket's super reliability and

sealing performance

• Excellent production capacity & short delivery time

Application

• Heat Exchanger and Vessel applications

• .High and low temperatures

• Pressures of up to 250 bar

• Low bolt loads

• Small flange widths & damaged flange

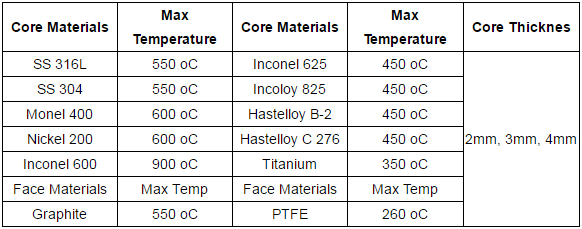

Materials for metal Core

Standard Size:

Thickness: 3.5mm, 4.0mm, 4.5mm, 5.0mm
We also provides other sizes, for details please contact us or send your inquiry directly to us
