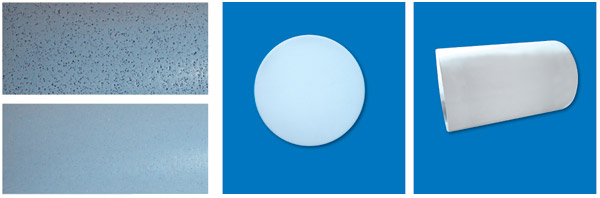

PTFE Porous Membrane

With professional ptfe porous membrane factory, KAXITE is one of the leading China PTFE manufacturers and suppliers.



With professional PTFE Porous Membrane factory, Ningbo Kaxite Sealing Materials Co.,Ltd is one of the leading China PTFE Tubing manufacturers and suppliers.

[ Features ]
Our PTFE porous membrane is different from the normal membrane in the market, which is made by the technology of two-direction stretching and then attached with other materials. Our membrane is made by a special technology that it doesn't need to be attached with other materials. It total brings the excellent performance of PTFE into play. The membrane is smooth, not adhesive, and wearable. It is anti impact, anti corrosive, anti high temperature and anti aging. It is also waterproof, easy to clean and has an excellent stability under chemical environment. The membrane is widely used in chemical and medical industries, environmental protection, sewage process, trash burn, electric power, electron and other fields.

[ Properties ]

Properties	Unit	Result
Pore size	um	0.2-100
Tensile Strength(min)	Mpa	10
Porosity	%	70-80
Temperature range	°C	-50 - +250

[ Specifications ]

Roll Membrane	width	200mm-1100mm
	thickness	0.08mm-0.3mm
	length	1m-100m
Square Membrane	width	500mm×500mm-1100mm×1100mm
	thickness	0.1mm-0.5mm
Round Membrane	diameter	500mm-1100mm
	thickness	0.1mm-0.5mm

Different shapes can be manufactured according to customers' requirement.
