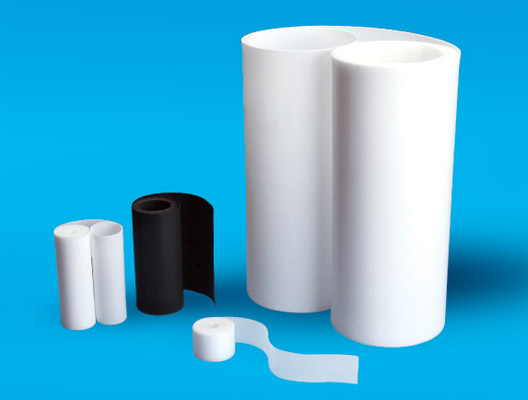

PTFE Skived Sheet Tape&Film

Kaxite Sealing's PTFE Skived Sheet Tape&Film is a flexible, durable sealing solution for industrial and DIY projects, offering chemical resistance and low friction. Its precision skiving ensures a smooth, reliable performance, ideal for engineers and manufacturers. Stand out with superior quality and customization options—choose Kaxite for unmatched sealing excellence.

Send Inquiry

Product Description

With professional ptfe skived sheet tape&film factory, KAXITE is one of the leading China PTFE manufacturers and suppliers.

With professional PTFE Tubing factory, Ningbo Kaxite Sealing Materials Co.,Ltd is one of the leading China PTFE Tubing manufacturers and suppliers.

[ Features ]

PTFE resin is first molded into work-blank and then skived. The PTFE resin skived sheet & tape are highly dielectric. Chemical resistant and not aging. They have a wide range of operation temperature.

1. PTFE Skived Sheet Tape

[ Main properties ]

Property	Unit	Result
Appetent density	g/cm³	2.10-2.30
Tensile strength (min)	MPa	≥15.0
Ultimate elongation (min)	%	%150
Dialectic strength	KV/mm	10

[ Specifications ]

Property	Code name
Skived sheet	Thickness 0.5-3 Width 900.1000.1200 Length≥200
Skived tape	Thickness 0.5-4 Width 100-500 Length≥1000

2. PTFE Skived Film

[ Main properties ]

Item	Thickness	Thickness allowance	Thickness	Width allowance	Length
high-density	0.015，0.030 0.020，0.035 0.025，0.040	±10%	30-90	±0.3	≥50
semi-density	0.030，0.035 0.05-0.10	±10%	60-90	±0.3	≥100
common	0.020，0.025 0.030，0.035 0.040-0.10	±10%	60-90	±2.0	≥50

[ Specifications ]

Property	Unit	High-density	Semi-density	Common
Tensile strength	MPa	≥30	≥20	≥10
Elongation at rupture	%	≥30	≥60	≥100
1MHz dielectric loss tangent		2.5×10^-4	--	--
1MHz dielectric constant		average 1.8-2.2	-	--
Dc breakdown voltage (Normal temperature)	KV/M	average 200 lowest 40	average 60 lowest 6	average 30

[ Applications ]

Lining,seaing and oil less lubricating material and dielectric at any frequencies. Capacitor dielectric, wire isolation, electrical instrument isolation.
