PTFE Teflon Guide Strip
Experience unparalleled performance with Kaxite Sealing's PTFE Teflon Guide Strip, engineered for durability and smooth operation in industrial applications. Perfect for engineers and maintenance teams, it reduces friction and wear, ensuring long-lasting efficiency and reliable performance. Trust Kaxite Sealing for superior sealing solutions that deliver exceptional value and quality.
With professional ptfe teflon guide strip factory, KAXITE is one of the leading China PTFE Gaskets manufacturers and suppliers.

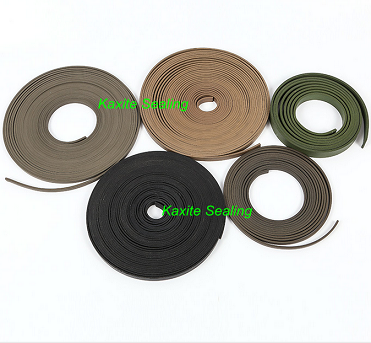

PTFE Teflon Guide Strip
Style KXT PG120 PTFE Teflon Guide Strip
PTFE Teflon Guide Strip owing to the low friction of fluorocarbon resin (PTFE), corrosion resistance, thermal stability and other excellent properties, has been widely used in friction, sealing parts, especially in the corrosive medium, and the problem is often difficult to be solved by general metal and other non-metallic materials. The elasticity and toughness of fluorocarbon resin to become excellent sealing material, especially when it is further through a variety of filling modification and some aromatic resin composite plastic alloy, can obtain the higher bearing capacity, thermal mechanical stability, abrasion resistance and the limit PV value.
PTFE Teflon Guide Strip plays a guiding role, in order to prevent the cylinder and piston rod wear, highly wear-resistant, low friction, heat resistant, resistant to chemical corrosion, allow any foreign body is embedded in the guide wear ring, to prevent the particles on the cylinder and seal loss, can absorb vibration performance, and has excellent wear resistance and good dry dynamic characteristics
Material: PTFE + copper powder, phenolic cloth, pitch
The main features: guide the role and absorption of vibration performance, and has excellent wear
resistance and good performance of the dry line. Operating temperature: the general use of the
temperature range of -40 ~ 120℃
Advantages
• Excellent wear resistance and good performance of the dry line
• Low friction of fluorocarbon resin (PTFE)
• Obtain the higher bearing capacity
• Resistant to chemical corrosion
• Good corrosion resistance
Cost savings
• Longer using life- less time for eplacement new gaskets-save money
• Improved material utilization reduces waste
Application
• CNC machine, tools grinding machine and drilling machine
• Widely used in friction
• Corrosive medium
• Sealing parts., etc
Sizes:
Thickness (mm) | Length (mm) | Width (mm) | Color |
1 | 55 | 3.2-60 | Black Brown |
1.5 | 35 | ||
2 | 27 | ||
2.5 | 22 | ||
3 | 18 | ||
4 | 13 | ||
5 | 10 | ||
6 | 8 |
Data sheet:
Testing Item | Unite item | Standards |
Tensil strength | Mpa | ≥15 |
Elongation at break | % | ≥150 |
Standard denstity | g/cm3 | 2.4-3.25 |
Hardness Shore | ≥70 | |
Coefficient of friction | ≤0.04 | |
Amount of wear | mg | ≤0.9 |
