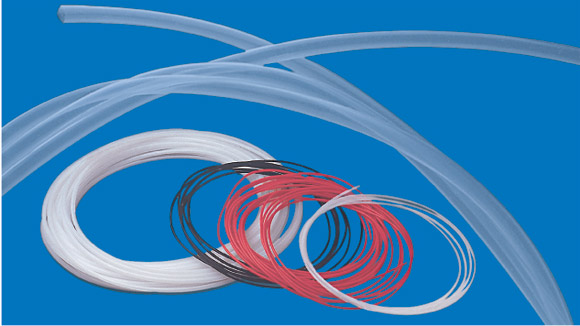

Also Nameel F46 Tubing
  • Also Nameel F46 TubingAlso Nameel F46 Tubing

Also Nameel F46 Tubing

Kaxite Sealing presents Also Nameel F46 Tubing, a premium PTFE tubing solution ideal for industrial and chemical applications. With exceptional chemical resistance, temperature stability, and durability, it ensures reliable performance in harsh environments. Perfect for engineers and manufacturers, this tubing prevents leaks and corrosion, offering peace of mind. Its unique Also Nameel F46 formulation outperforms standard options, delivering unmatched longevity. Choose Kaxite Sealing for trusted quality and efficiency.

With professional also nameel f46 tubing factory, KAXITE is one of the leading China PTFE manufacturers and suppliers.



With professional PTFE Tubing factory, Ningbo Kaxite Sealing Materials Co.,Ltd is one of the leading China PTFE Tubing manufacturers and suppliers.

[ Features ]
FEP also named F46, it manfactured by ram extruding method with FEP resin adding additive (or without additive) has realiable. properties of resistant from high or low temperature, chemical corruption electric insulation, non-stick.
Also Nameel F46 Tubing
[ Specifications ]
Unit mm
outside diameter
Tolerance
wall thickness
Tolerance
outside diameter
Tolerance
wall thickness
Tolerance
1
± 0.08
0.2
± 0.05
16
± 0.20
1.0
± 0.15
2
± 0.08
0.2
± 0.05
18
± 0.20
1.0
± 0.15
3
± 0.10
0.4
± 0.06
20
± 0.40
1.0
± 0.15
4
± 0.10
0.4
± 0.06
25
± 0.40
1.5
± 0.20
5
± 0.10
0.5
± 0.10
32
± 0.50
1.5
± 0.20
6
± 0.10
0.5
± 0.10
36
± 0.50
2.0
± 0.20
8
± 0.20
0.5
± 0.10
40
± 0.50
2.0
± 0.20
10
± 0.20
1.0
± 0.15
50
± 0.50
2.0
± 0.20
12
± 0.20
1.0
± 0.15
65
± 0.80
3.0
± 0.30
14
± 0.20
1.0
± 0.15
80
± 1.00
3.0
± 0.40
[ Main properties ]
Properties
Unit
Result
electricity gas
be current
Tensile strength
Mpa
≥14
≥14
Ultimate Elongation
%
175
175
Dialectric Strength 0.2mm
wall 0.4mm
thickness ≥0.5mm
MV/m
30
25
24
--
--
--
[ Applications ]
Can be long term used under the temperature from -80°C - 200°C.
YCSG-1 tube mainly used in various electric cable, electric wire, protecting cover, eletric elements and ray tube.
YCSG-2 tube mainly used in bad working coudition, for example, inner liner pipes for corrosive fluids and gas, heat exchange machine tube and fluids meter tube.
Hot Tags: F46 Tubing Supplier, OEM F46 Tubing, Custom Tubing Solutions
