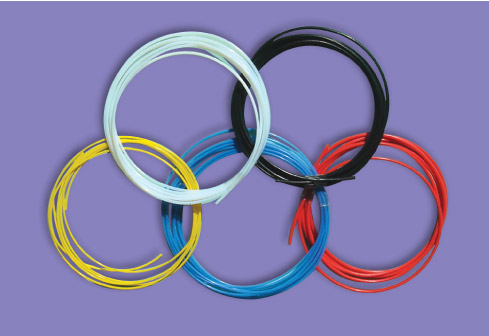

PTFE Extruded Tubing

Kaxite Sealing's PTFE Extruded Tubing delivers unmatched chemical resistance and high-temperature performance, ideal for demanding industrial applications. Crafted with premium materials, it ensures durability and reliability, solving leakage and corrosion issues for engineers and manufacturers. Experience superior protection and efficiency—upgrade your operations today.

Send Inquiry

Product Description

With professional ptfe extruded tubing factory, KAXITE is one of the leading China PTFE manufacturers and suppliers.

With professional PTFE Tubing factory, Ningbo Kaxite Sealing Materials Co.,Ltd is one of the leading China PTFE Tubing manufacturers and suppliers.

[ Features ]

PTFE extruded tubing is manufactured by high pressure PTFE dispense resin mixed with additive, it is extruded and sintered. According to different demands, the tubing could be opaque or translucent.
PTFE is well known for its chemical resistance, not aging, non stick, self-lubrication, insulation and wide working temperature range from -180°C to +260°C. Because of these excellent properties, PTFE has a wide application in fields of chemical, mechanical, electronics, medical and aviation, etc.

[ Main properties ]

Properties	Unit	Result
Apparent density	g/cm³	2.10-2.20
Tensile strength (min)	MPa	20
Ultimate elongation (min)	%	200
Residual Lubricant Content (max)	%	0.5
Dialectric Strength (min)	KV/mm	10

[ Applications ]

Used as wire and cable jacket, inner lined pipes for corrosive fluids and used in hydrochloric acid heat exchanger, etc.

[ Specifications ]

OD×ID (mm)	Tolerance (mm)	OD×ID (mm)	Tolerance (mm)
Φ0.8×0.4	±0.08	Φ12×10	±0.2
Φ1×0.5	±0.08	Φ14×12	±0.2
Φ2×1	±0.08	Φ16×14	±0.2
Φ4×2	±0.1	Φ18×16	±0.3
Φ6×4	±0.1	Φ20×18	±0.3
Φ8×6	±0.1	Φ22×20	±0.3
Φ10×8	±0.1	Φ24×21	±0.3
